SMALL FRAME TURBO MOUNT

  • Sale
  • Regular price $129.00

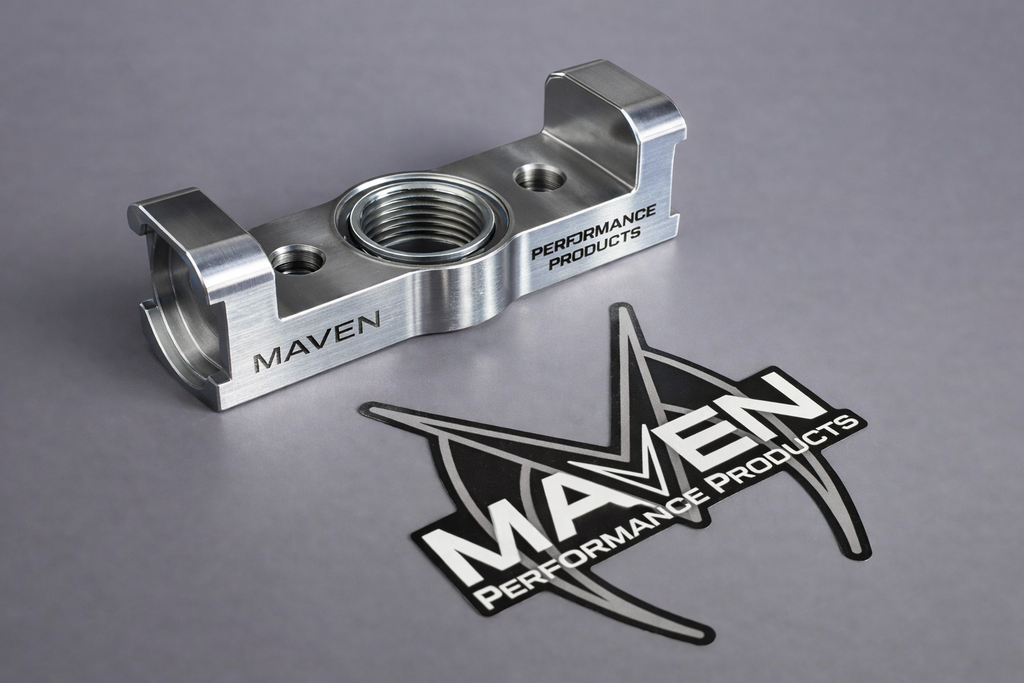

THE MAVEN PERFORMANCE BILLET STEEL TURBO MOUNT SUPPORTS THE TURBO FROM THE BEARING HOUSING AT THE DRAIN INTERFACE. THIS MOUNT WAS DESIGNED SPECIFICALLY FOR SMALL FRAME TURBOCHARGERS SUCH AS THE BORG WARNER s300, PRECISION TURBOS (60/70MM RANGE) PLUS A VERSION FOR THE GT35

CHECK OUT OUR TURBO MOUNT BUNDLE OFFER CLICK HERE!

PLEASE SEE SELECTION CHART OR CONTACT US FOR HELP SELECTING THE CORRECT MOUNT

FEATURES:

DESIGNED & MACHINED IN THE USA

BILLET STEEL – 1018 CRS

2 DIFFERENT TUBE DIAMETER POCKETS- 7/8″ & 1″

CENTER MOUNTING ON BEARING HOUSING

-10 ORB/AN DRAIN (GT35 VARIATION= -8 ORB/AN)

O-RING SEAL TO DRAIN SURFACE- NO GASKET REQUIRED (STANDARD GASKET ON GT35 /1.5" VERSION)

BEARING HOUSING CAN PIVOT 360 DEGREES WITHOUT INTERFERENCE

WEIGHS JUST 9.5 oz

MEASURES 3.75″L  1.35W  1.125H

NEED HELP SELECTING THE CORRECT TURBO DRAIN FLANGE MOUNT FOR YOUR PROJECT? CLICK HERE

FASTENERS CAN BE FOUND HERE
