SINGLE CONNECTOR BULKHEAD

  • Sale
  • $137.00
  • Regular price $153.00

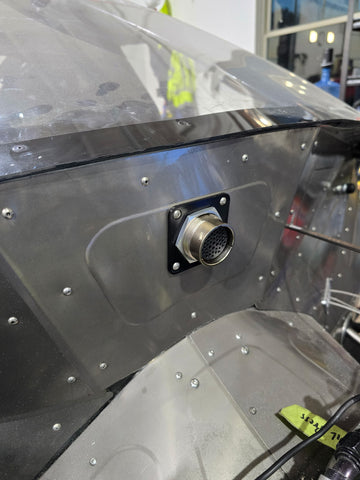

THIS SINGLE CONNECTOR BULKHEAD COMES WITH 1 ALUMINUM SHELL SIZE 24 DEUTSCH HD30 SERIES CONNECTOR (BOTH SIDES OF THE CONNECTOR, PLUG AND RECEPTACAL) + ALL THE CONTACT TERMINALS (PINS AND SOCKETS) TO POPULATE THE CONNECTOR. BOOTS SOLD SEPARATELY, THE BOOT STYLE WILL BE SPECIFIC TO THE BUILD. THIS IS A GREAT WAY TO PASS WIRES THROUGH A FIREWALL, AND EASILY DISCONNECT THE HARNESS WITH JUST A QUARTER TURN. MANY HAVE FOUND THIS A GREAT WAY TO COVER UNUSED AC OR HEATER HOSE HOLES ON THE FIREWALL.

*2 shell sizes available- shell size 18 comes in 8,20,21 pin options and shell size 24 comes in 16,29,35,47 options

NOTE TO FIRST TIME USERS OF THESE TYPE OF CONNECTORS; FOLLOW THIS INSTRUCTIONS CAREFULLY AND YOU WILL BE SUCCESSFUL:

  1. USE OF THE CORRECT CRIMPING TOOL IS ESSENTIAL! MUST USE CRIMPERS SIMILAR TO THESE -CLICK HERE-  BORROW ONE FROM A FRIEND IF YOU CAN- FAILURE TO DO SO WILL RESULT IN PINS STUCK IN THE CONNECTOR- THIS IS THE ONLY CRIMPER REQUIRED FOR THE STANDARD CONNECTORS THAT WE SELL
  2. FOLLOW CRIMPING PROCEDURES FOR SOLID CONTACTS -CLICK HERE-
  3. YOU CAN FIND INSTRUCTIONS FOR ASSEMBLING THE DEUTSCH CONNECTORS CLICK HERE
  4. REQUIRES A CORRECT REMOVAL TOOL TO REMOVE THE TERMINALS FROM THE CONNECTOR, WE LIKE THIS ONE BUT THERE ARE MANY VERSIONS ON THE MARKET- CLICK HERE
  5. PIN REMOVAL INSTRUCTIONS CLICK HERE
  6. USE THE PROVIDED TEMPLATE TO LOCATE THE BOLT HOLE LOCATIONS FOR THE BULKHEAD PLATE

DEUTSCH CIRCULAR/CANNON TYPE SINGLE BULKHEAD PLATE + CONNECTOR FEATURES THE FOLLOWING:

  • CNC MACHINED BILLET ALUMINUM MADE IN THE USA

  • PLATE COMES IN BLACK ANODIZED FINISH

  • POLISHED ALUMINUM HD30 DEUTSCH CONNECTOR (BOTH SIDES)

  • CONNECTOR POSITIVELY LOCKED INTO POSITION

  • STAINLESS STEEL FASTENERS INCLUDED

  • MOUNTS ONE SHELL SIZE 24 DEUTSCH CONNECTOR

  • PLATE MEASURES 2.6" SQUARE

  • TERMINALS (PINS/SOCKETS) FOR CONNECTOR INCLUDED

  • HIGH QUALITY SOLID CONTACTS/TERMINALS (NOT STAMPED)

  • PAPER INSTALLATION TEMPLATE AND PINOUT CLICK HERE

  • BOOTS SOLD SEPARATELY, THE BOOT STYLE WILL BE SPECIFIC TO THE BUILD.



BOX OPENING IN THE VIDEO BELOW!

 contact us if you have any questions!

SINGLE CONNECTOR BULKHEAD SELECTION CHART



solid contact deutsch terminal usage instructions
