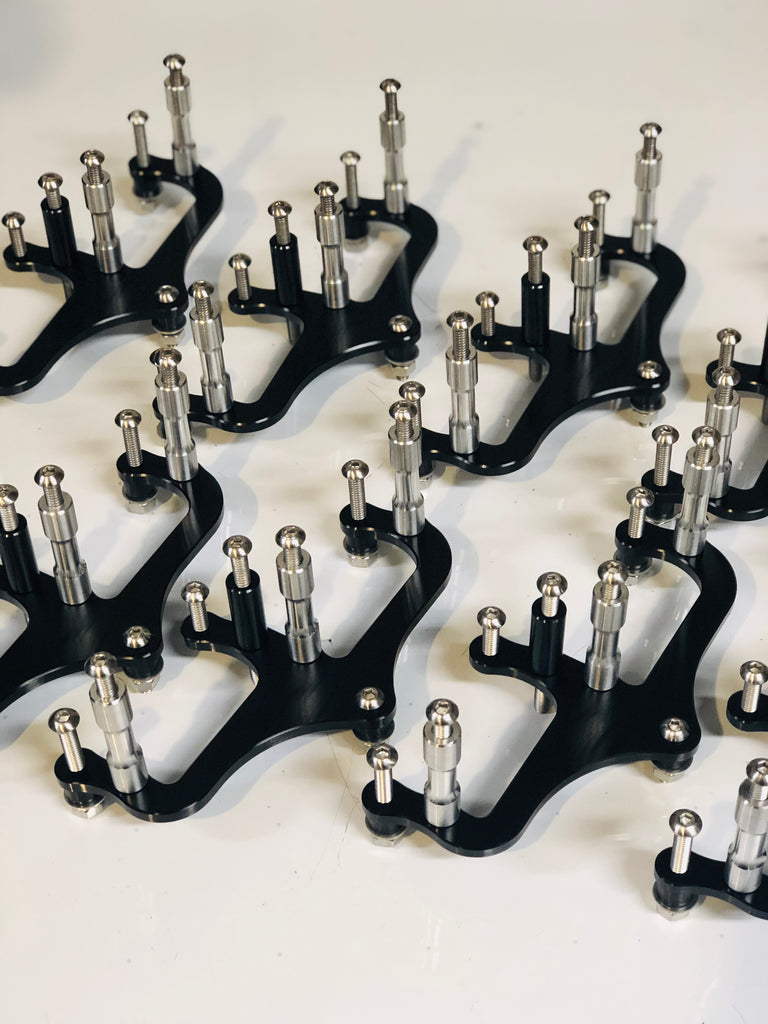

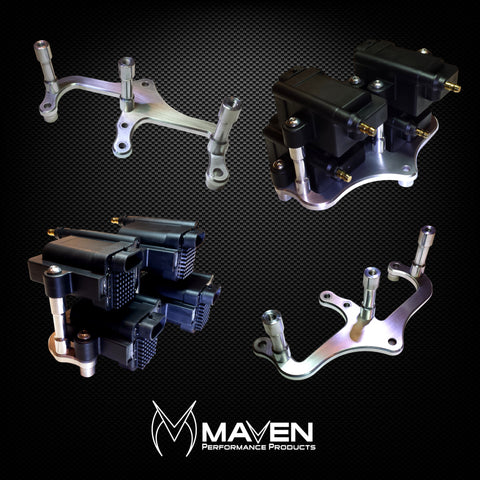

The Maven Performance billet coil mount / bracket system provides mounting of (4) IGN-1A coils in a compact footprint of less than 6″x7″ making it ideal for just about any coil near plug (1 coil/cylinder) performance application. The IGN-1A coil is one of the most common performance smart coil on the market, and the same coil that is sold by most popular aftermarket ECU manufactures under a variety of labels. IF YOU ARE MOUNTING 8 COILS YOU NEED 2 MOUNTS THESE MOUNT IGN1A/SMART COILS ONLY- THEY DO NOT WORK WITH CDI/DUMB COILS- SEE OUR TUBE CLAMP & IN-LINE VERSION, THEY MOUNT BOTH SMART & CDI (DO NOT FIT FACTORY TYPE COILS)
All coils spaced and staggered to allow easy access to harness and spark plug wires
Square footprint allows the coil set to easily be rotated to direct coil wires toward plugs
Tri-pod mounting allows mount to fasten to firewall in less than flat conditions
All parts CNC machined in the USA
All Parts (Bracket, Spacers, Fasteners) weight = 7.8 oz.
For a template to verify fitment and assembly diagram click here!
KIT INCLUDES:
-1 mounting bracket (to mount 4 coils)
-All required spacers
-All required fasteners- stainless steel button head
-Mounting Template
*Coils not included
