DUAL CONNECTOR BULKHEAD

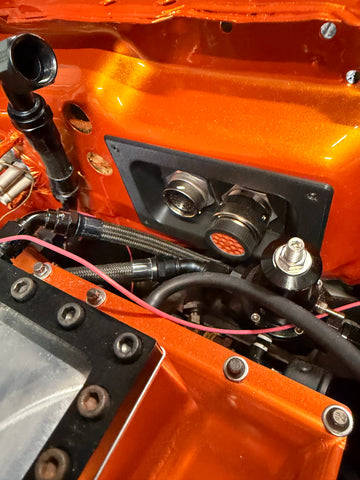

THIS DUAL CONNECTOR BULKHEAD COMES WITH 2 ALUMINUM SHELL SIZE 24 DEUTSCH HD30 SERIES CONNECTORS (BOTH SIDES OF THE CONNECTORS, PLUG AND RECEPTACAL) + ALL THE CONTACT TERMINALS (PINS AND SOCKETS) TO POPULATE THE CONNECTOR.  BOOTS SOLD SEPARATELY, THE BOOT STYLE WILL BE SPECIFIC TO THE BUILD. THIS IS A GREAT WAY TO PASS WIRES THROUGH A FIREWALL, AND EASILY DISCONNECT THE HARNESS WITH JUST A QUARTER TURN. MANY HAVE FOUND THIS A GREAT WAY TO COVER UNUSED AC OR HEATER HOSE HOLES ON THE FIREWALL.

NOTE TO FIRST TIME USERS OF THESE TYPE OF CONNECTORS; FOLLOW THIS INSTRUCTIONS CAREFULLY AND YOU WILL BE SUCCESSFUL:

1. USE OF THE CORRECT CRIMPING TOOL IS ESSENTIAL! MUST USE CRIMPERS SIMILAR TO THESE -CLICK HERE-  BORROW ONE FROM A FRIEND IF YOU CAN- FAILURE TO DO SO WILL RESULT IN PINS STUCK IN THE CONNECTOR- THIS IS THE ONLY CRIMPER REQUIRED FOR THE STANDARD CONNECTORS THAT WE SELL
2. FOLLOW CRIMPING PROCEDURES FOR SOLID CONTACTS -CLICK HERE-
3. YOU CAN FIND INSTRUCTIONS FOR ASSEMBLING THE DEUTSCH CONNECTORS CLICK HERE
4. REQUIRES A CORRECT REMOVAL TOOL TO REMOVE THE TERMINALS FROM THE CONNECTOR, WE LIKE THIS ONE BUT THERE ARE MANY VERSIONS ON THE MARKET- CLICK HERE
5. PIN REMOVAL INSTRUCTIONS CLICK HERE
6. USE THE PROVIDED TEMPLATE TO LOCATE THE BOLT HOLE LOCATIONS FOR THE BULKHEAD PLATE

DEUTSCH CIRCULAR/CANNON TYPE SINGLE BULKHEAD PLATE + CONNECTOR FEATURES THE FOLLOWING:

• CNC MACHINED BILLET ALUMINUM MADE IN THE USA

• PLATE COMES IN BLACK ANODIZED FINISH

• POLISHED ALUMINUM DEUTSCH HD30 CONNECTOR (BOTH SIDES)

• CONNECTOR POSITIVELY LOCKED INTO POSITION

• STAINLESS STEEL FASTENERS INCLUDED

• MOUNTS 2 SHELL SIZE 24 DEUTSCH CONNECTOR

• PLATE MEASURES 2.6" X 5.25

• TERMINALS (PINS/SOCKETS) FOR CONNECTOR INCLUDED

• HIGH QUALITY SOLID CONTACTS/TERMINALS (NOT STAMPED)

• PAPER INSTALLATION TEMPLATE AND PINOUT CLICK HERE

• BOOTS SOLD SEPARATELY, THE BOOT STYLE WILL BE SPECIFIC TO THE BUILD.

contact us if you have any questions!
