SINGLE CONNECTOR BULKHEAD

  • Sale
  • Regular price $115.00

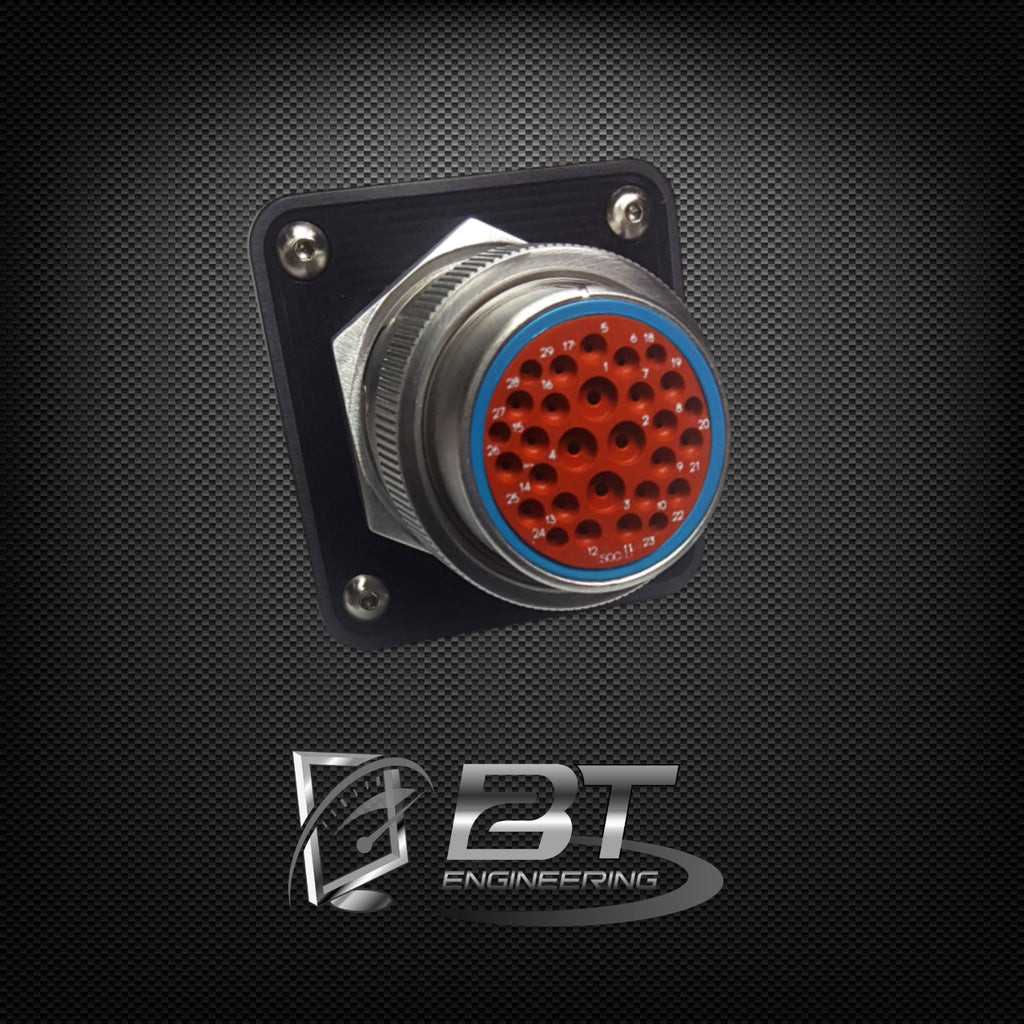

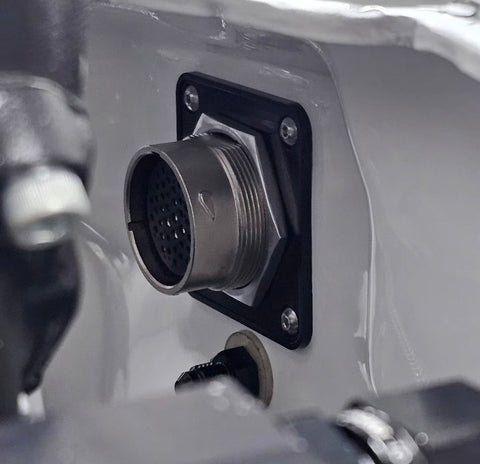

THIS SINGLE CONNECTOR BULKHEAD COMES WITH 1 ALUMINUM SHELL SIZE 24 DEUTSCH HD30 SERIES CONNECTOR + ALL THE CONTACT TERMINALS (PINS AND SOCKETS) TO POPULATE THE CONNECTOR.  THIS IS A GREAT WAY TO PASS WIRES THROUGH A FIREWALL, AND EASILY DISCONNECT THE HARNESS WITH JUST A QUARTER TURN. MANY HAVE FOUND THIS A GREAT WAY TO COVER UNUSED AC OR HEATER HOSE HOLES ON THE FIREWALL.

NOTE TO FIRST TIME USERS OF THESE TYPE OF CONNECTORS; FOLLOW THIS INSTRUCTIONS CAREFULLY AND YOU WILL BE SUCCESSFUL:

  1. USE OF THE CORRECT CRIMPING TOOL IS ESSENTIAL! MUST USE CRIMPERS SIMILAR TO THESE -CLICK HERE-  BORROW ONE FROM A FRIEND IF YOU CAN- FAILURE TO DO SO WILL RESULT IN PINS STUCK IN THE CONNECTOR- THIS IS THE ONLY CRIMPER REQUIRED FOR THE STANDARD CONNECTORS THAT WE SELL
  2. FOLLOW CRIMPING PROCEDURES FOR SOLID CONTACTS -CLICK HERE-
  3. YOU CAN FIND INSTRUCTIONS FOR ASSEMBLING THE DEUTSCH CONNECTORS CLICK HERE
  4. REQUIRES A CORRECT REMOVAL TOOL TO REMOVE THE TERMINALS FROM THE CONNECTOR, WE LIKE THIS ONE BUT THERE ARE MANY VERSIONS ON THE MARKET- CLICK HERE
  5. PIN REMOVAL INSTRUCTIONS CLICK HERE
  6. USE THE PROVIDED TEMPLATE TO LOCATE THE BOLT HOLE LOCATIONS FOR THE BULKHEAD PLATE

DEUTSCH CIRCULAR/CANNON TYPE SINGLE BULKHEAD PLATE + CONNECTOR FEATURES THE FOLLOWING:

  • CNC MACHINED BILLET ALUMINUM MADE IN THE USA

  • BLACK ANODIZED FINISH

  • POLISHED ALUMINUM HD30 DEUTSCH CONNECTOR

  • CONNECTOR POSITIVELY LOCKED INTO POSITION

  • STAINLESS STEEL FASTENERS INCLUDED

  • MOUNTS ONE SHELL SIZE 24 DEUTSCH CONNECTOR

  • PLATE MEASURES 2.6" SQUARE

  • TERMINALS (PINS/SOCKETS) FOR CONNECTOR INCLUDED

  • HIGH QUALITY SOLID CONTACTS/TERMINALS (NOT STAMPED)

  • PAPER INSTALLATION TEMPLATE INCLUDED
