DTV CONNECTOR KIT

DTV CONNECTOR KIT

  • Sale
  • $75.00

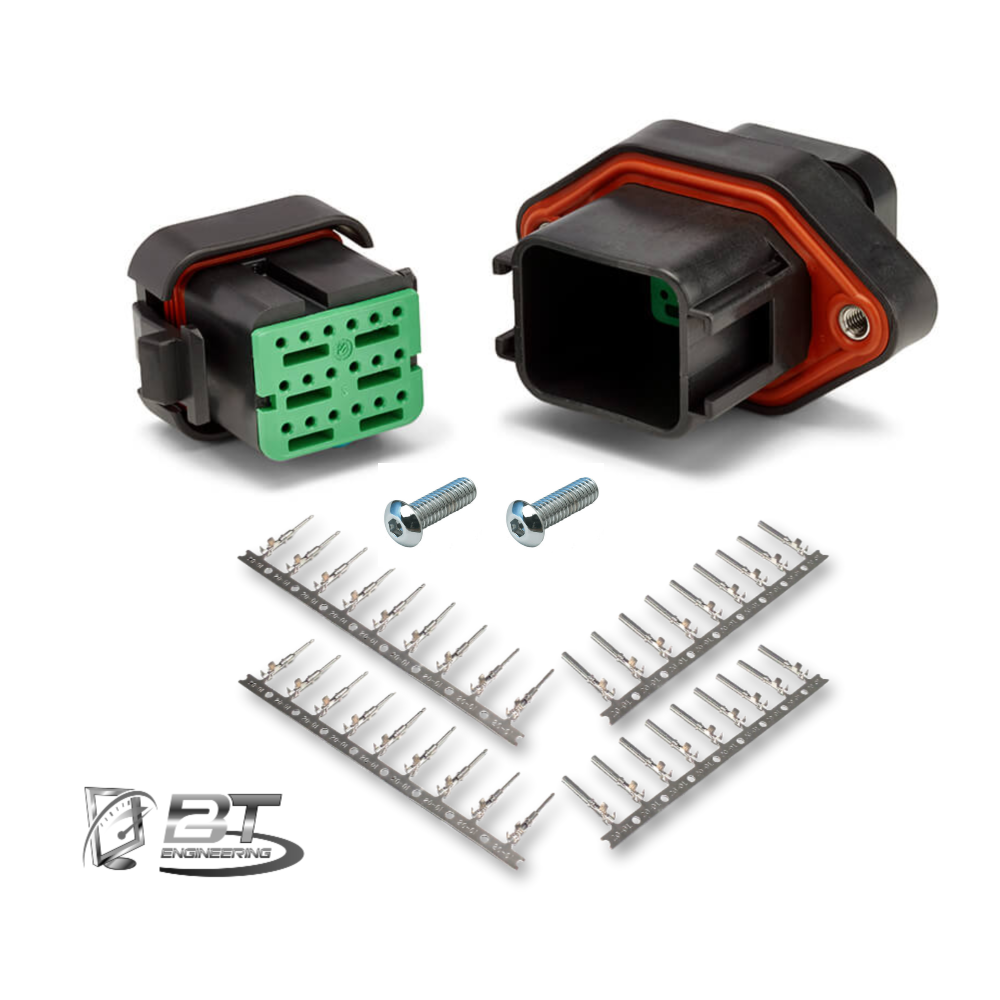

THE DEUTSCH DTV SERIES FLANGE/BULKHEAD STYLE CONNECTOR IS A COST EFFECTIVE WAY TO PASS WIRES THROUGH A FIREWALL, INTO A TRUNK, OR GET CREATIVE AND MOUNT IT ON SOME TABS FOR ABOUT ANYTHING YOU CAN DREAM UP. IT COMES WITH THE 18 TERMINAL CONNECTOR (BOTH SIDES, PLUG AND RECEPTACLE) + ALL THE CONTACT TERMINALS (PINS AND SOCKETS) TO POPULATE THE CONNECTOR. MANY HAVE FOUND THIS A GREAT WAY TO COVER UNUSED AC OR HEATER HOSE HOLES ON THE FIREWALL. IF YOU ARE FAMILIAR WITH THE POPULAR DEUTSCH DT SERIES CONNECTOR, THIS IS BASICALLY A GIANT 18 PIN VERSION WITH A FLANGE!

A FEW NOTES ABOUT THIS KIT:

  1. THIS KIT IS PROVIDED WITH STAMPED TERMINALS, THIS ALLOWS YOU TO CRIMP WITH LESS EXPENSIVE MORE COMMON CRIMPING TOOL THAN THE SOLID TERMINALS THAT ARE PROVIDED WITH OUR CANNON STYLE CONNECTOR BULKHEADS. THE TERMINALS ARE MARKED 16-18 GA HOWEVER WITHOUT MUCH ISSUE YOU CAN CRIMP 14-20 ga WIRES. THE CURRENT LIMIT ON THE TERMINAL IS 13 Amps CONTINUOUS IN EXTREME CONDITIONS. THIS KIT IS INTEND TO BE FLEXIBLE AND CREATIVE WAY TO PASS WIRES THROUGH A FIREWALL OR ANY CREATIVE USE YOU CAN DREAM UP- IT IS NOT AS NICE AS OUR BULKHEAD ROUND/CANNON TYPE CONNECTORS FOUND HERE, HOWEVER IT IS A GOOD CONNECTOR
  2. FOLLOW CRIMPING PROCEDURES FOR STAMPED & FORMED CONTACTS -CLICK HERE-  NOTE THAT MOST CRIMPING TOOLS THAT WILL WORK LOOK MORE LIKE PLIERS THAN WHAT ARE IN THE VIDEO, THE IMPORTANT THING IS THE PROFILE OF THE CRIMP PORTION
  3. YOU CAN FIND INSTRUCTIONS FOR ASSEMBLING THE DEUTSCH DT SERIES CONNECTORS CLICK HERE
  4. USE THE PROVIDED TEMPLATE TO LOCATE THE BOLT HOLE LOCATIONS FOR THE BULKHEAD PLATE
  5. USE THE PROVIDED PINOUT SHEET TO NOTE THE USE OF EACH TERMINAL
  6. IF YOU WOULD LIKE SEALING PLUGS FOR EMPTY TERMINALS PLEASE LOCATIONS CLICK HERE

DEUTSCH DT CONNECTOR FEATURES THE FOLLOWING:

  • DTV 18 TERMINAL CONNECTOR (BOTH SIDES)

  • INTEGRATED MATING LATCH

  • FLANGE MOUNT DESIGN WITH RUBBER SEALING SURFACE

  • MATERIAL: THERMOPLASTIC HOUSING

  • GREEN WEDGELOCK LOCKS TERMINALS IN POSITION

  • STAINLESS STEEL FASTENERS INCLUDED

  • STAMPED CONTACTS/TERMINALS INCLUDED (RATED FOR 13 AMPS, SEE ABOVE)

  • PAPER INSTALLATION TEMPLATE AND PINOUT SHEET

contact us if you have any questions!
